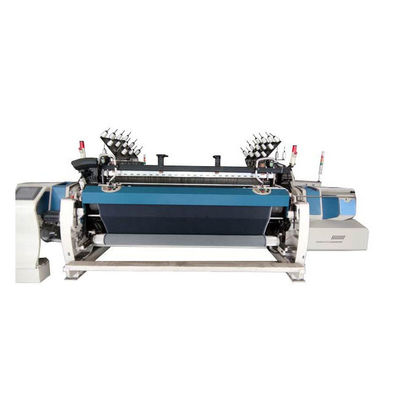

Shuttleless 800rpm Flexible Rapier Weaving Loom 360cm Reed Width

Shuttleless 800rpm Flexible Rapier Weaving Loom 360cm Reed Width

Product Details:

Place of Origin: China
Brand Name: Goodfore
Certification: ISO
Model Number: 808-ULTRAFAST

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD1500~USD4000/set
Packaging Details: woodern box
Delivery Time: 5-15 working days
Payment Terms: T/T, Western Union, L/C, , D/A
Supply Ability: 200/set per month
Get Best Price Contact Now

Detail Information

Condition: New Quality: High-quality
Type: Rapier Loom Material: Steel And Plastic
Brand Name: GOODFORE Weight: 2500 KG
Speed: 180-230rpm Reed Width: 150cm-360cm
High Light:

360cm reed Rapier Weaving Loom

,

800rpm Rapier Weaving Loom

,

shuttleless flexible rapier loom

Product Description

Automatic Inspection Function High Speed Low Power Consumption Loom Rapier


Rapier loom is the most widely used shuttleless loom at present. In addition to the characteristics of high-speed, high automation and high-efficiency production of shuttleless loom, its active weft insertion mode has strong variety adaptability and can adapt to the weft insertion of all kinds of yarns. In addition, rapier loom also has obvious advantages in multi-color weft weaving, and can produce color weaving products with up to 16 color weft yarns. With shuttleless loom replacing shuttle loom, rapier loom will become the main production machine of woven fabric.





Model
808-ULTRAFAST
Max Speed
800rpm
Main Motor
5.5-7.5KW
Loom Width
190, 220,230,250,280,300,340,380
Weft Battening
Matched cam which in tank wall
Color Selecting
8 electronic color selecting
Shedding Device
Electronic dobby 16-20 shafts, or electronic jacquard
Let off
Electronic Let off, warp beam ∅800mm or ∅1000mm
Take up
Electronic Take up, weft density range in 1-150 picks/cm, cloth roll diameter 600mm or cloth roll out of machine 1200mm
Lubrication
Spray lubrication, Oil bath lubrication, Manual oil pump lubrication, Oil gas lubrication, four method exist together


Products Picture







Shuttleless 800rpm Flexible Rapier Weaving Loom 360cm Reed Width 0Shuttleless 800rpm Flexible Rapier Weaving Loom 360cm Reed Width 1Shuttleless 800rpm Flexible Rapier Weaving Loom 360cm Reed Width 2



Application Range

Shuttleless 800rpm Flexible Rapier Weaving Loom 360cm Reed Width 3

Shuttleless 800rpm Flexible Rapier Weaving Loom 360cm Reed Width 4







PRODUCT CONFIGURATION

Shuttleless 800rpm Flexible Rapier Weaving Loom 360cm Reed Width 5

Production Process

Shuttleless 800rpm Flexible Rapier Weaving Loom 360cm Reed Width 6

Advantages

1.Super speed
Solid body material structure, intermedliate conjugate CAM weft battening design, steel guide rall, super motor make the maximum speed of the machine up to 800rpm, stable speed of 550-650rpm. This model can run at full speed from the first weft flling, save time and increase efficiency.

2.Intermediate conjugate CAM weft battening
It enhances the rigidity of the weft battening mechanism, Increases the weft battening force, and the motion balance Is bene- ticlal to hnlgh-speed
weaving.

3.Automatic Controlling
PLC contrlling system, auto-stop, auto-start, auto weft seeking, over compensation, weft compensation, auto fault recog-nition and etc.

4.Automatic Weft Seeking
The electromagnetic clutch automatic weft seeking and heald reversing.

5.Four Lubrication Method Exist Together
Spray lubrication, Oil bath Iubrication, Manual oil pump Iubrication, Oil gas lubrication.





Our service

  • Provide technical design and solutions;
  • Design and manufacture non-standard equipment;
  • Carry out professional technical training and guidance according to the contract;
  • Spare parts are available at any time;
  • Remote technical consultation and service;
  • Provide other special technical services according to customer requirements.



Parts of customers

Shuttleless 800rpm Flexible Rapier Weaving Loom 360cm Reed Width 7

Our exhibition



Shuttleless 800rpm Flexible Rapier Weaving Loom 360cm Reed Width 8

Shuttleless 800rpm Flexible Rapier Weaving Loom 360cm Reed Width 9



PRODUCTION WORKSHOP
Shuttleless 800rpm Flexible Rapier Weaving Loom 360cm Reed Width 10
Shuttleless 800rpm Flexible Rapier Weaving Loom 360cm Reed Width 11


FAQ



Are you a factory or trading company ?
yes ,we are trading company and we also have own factory
Where is your main market ?
12years ,our main markets are in Asia ,Europe ,North America
Can I get free samples from your factory ?
Yes ,of couse ,we are honored to offer your samples under $10.however ,freight you pay
If products have some quality problem ,how would you deal with?
We will responsible for all the quality problem if this had happed .
Where is your factory located?How can I visit there ?
Our factory is located in Gaoli Auto Expo City ,Huishan Area ,Wuxi ,China ,You can fiy to Shang hai airport .
What is the delivery time of your products ?
Qualitys is pridrity ,we always attch great inportance to quality controlling from the very beginning to the very end .Our
factory has gained ISO991 certification
