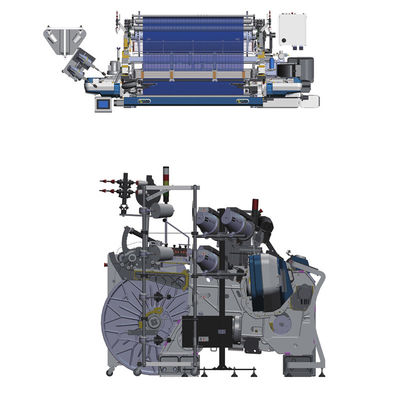

750rpm Electronic Dobby Rapier Power Loom Machine

  • 750rpm Electronic Dobby Rapier Power Loom Machine
  • 750rpm Electronic Dobby Rapier Power Loom Machine
  • 750rpm Electronic Dobby Rapier Power Loom Machine
  • 750rpm Electronic Dobby Rapier Power Loom Machine
  • 750rpm Electronic Dobby Rapier Power Loom Machine
  • 750rpm Electronic Dobby Rapier Power Loom Machine
Place of Origin China
Brand Name Goodfore
Certification ISO
Model Number OPMAX
Minimum Order Quantity 1 set
Price USD1500~USD4000/set
Packaging Details woodern box
Delivery Time 5-15 working days
Payment Terms T/T, Western Union, L/C, , D/A
Supply Ability 200/set per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New Quality High-quality
Type Rapier Loom Material Steel And Plastic
Color Blue Brand Name GOODFORE
Weft Insertion Rate 1425 Meter/min RPM 750 Rpm/min (190cm)
High Light

750rpm dobby rapier loom

,

750rpm rapier power loom machine

,

electronic dobby rapier loom
Leave a Message
Product Description

Rapier Loom High Speed GF-OPMAX-I Repair Loom Machine China Rapier Loom



Quick Details
Applicable Industries:
weaving machines
Showroom Location:
None
Video outgoing-inspection:
Not Available
Machinery Test Report:
Not Available
Marketing Type:
New Product 2020
Warranty of core components:
1 Year
Core Components:
PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Condition:
New
Type:
Rapier Loom
Application:
Production of denim, textile industry
Production Capacity:
2.5KW
Place of Origin:
China
Brand Name:
goodfore
Dimension(L*W*H):
AS TO REAL CONDITION
Weight:
5000 KG
Power:
2.7KW-3.7KW, 2.7KW-3.7KW
Warranty:
1 Year
Key Selling Points:
efficient
Name:
rapier loom
Color:
Blue
Keywords:
rapier loom
Working width:
Reed width-(0-60cm)
After Warranty Service:
Online support/Spare parts/Online support
Speed:
750 rpm/min (190cm)
Weft insertion rate:
1425 meter/min













































































Reed width 190,220, 230,240,250,280 (narrow loom);320,340,360,380 (wide loom)
Loom driving driven by on-off magnetoresistive main super-motor
RPM 750 rpm/min (190cm) as designed as utmost, economically 550~600 RPM/min (190cm)
Weft insertion rate 1425 meter/min utmost
Yarn scope

short yarn Nm200~Nm3 (Ne120~Ne1.8)

Long yarn: 22 den~3000 den(25dtex~3300dtex)
Weft color selection 1~8 colors or freely programmed in terms of different yarn specifications
Weft detection 6 or 8 holes weft detector of double -weft prevention
Shedding mechanism STAUBLI 2658 electronic rotated Dobby, utmostly installed 20 heald frames, or tappet shedding or jacquard shedding
Beating-up mechanism two inside set of conjugate cam beating-up mechanism (narrow loom)three inside set of conjugate cam beating-up mechanism (wide loom)
Weft insertion system unique space linkage weft insertion system1 6mm narrow gripper band,single guiding pilot system30mm wide gripper band, no guiding pilot system (option)
Let-off mechanism Servo motor control, 850 kg gravimetric tension sensor Warm beam discharge mechanism as double back rest
Warp beam diameter 800mm,1000mm
Warp Stoppage 6 row electronic stoppage stand, circular pitch: 30 mm
Take-up mechanism servo motor control, double pressing rollers
Utmost take-up diameter 550mm
Batch winder 1 500 mm (option)
Weft density 4~200 pick/cm
Weft finding function Electronic weft finding, close shed positioning control system
Scissors Mechanic weft cutter Mechanic selvage cutter
Net port Ethernet, USB, serial interface
Other functions Network group control, Remote control diagnosis(option), Water-cooling system(option).
















products picture



750rpm Electronic Dobby Rapier Power Loom Machine 0750rpm Electronic Dobby Rapier Power Loom Machine 1750rpm Electronic Dobby Rapier Power Loom Machine 2750rpm Electronic Dobby Rapier Power Loom Machine 3







Product details



750rpm Electronic Dobby Rapier Power Loom Machine 4

750rpm Electronic Dobby Rapier Power Loom Machine 5

750rpm Electronic Dobby Rapier Power Loom Machine 6



Advantages

1.Function: High-speed, Outstanding Quality of Fabrics, high- Eficiency
2.Production Cost: low power consumption, less maintenance, less spare parts needed.
3.Investment: low investment, quick profit reward, long-term performance.
4.Handleability: easy operation and convenience, change fabrics easily, extensive use.



Our service

  • Provide technical design and solutions;
  • Design and manufacture non-standard equipment;
  • Carry out professional technical training and guidance according to the contract;
  • Spare parts are available at any time;
  • Remote technical consultation and service;
  • Provide other special technical services according to customer requirements.

Our History


Goodmore tex Machinery Co., Ltd. was established in 2000. Its main products are jacquard machine, trademark machine and carpet machine parts.
In 2005, goodmore tex Machinery Co., Ltd. began to export to foreign countries, and our products entered the EU market.
In 2008, goodmore tex Machinery Co., Ltd. began to be a supplier of some small textile mills in China.
In 2009, goodmore tex Machinery Co., Ltd. began to cooperate with some famous foreign textile mills. We provide some textile machinery and spare parts.
In 2010, we expanded the plant.
In 2012, goodmore tex Machinery Co., Ltd. passed the ISO quality system certification.
In 2014, the factory moved to Gaoli Auto Expo City, Huishan District, Wuxi City. In addition, we added some textile spare parts and officially began mass production.



Our exhibition



750rpm Electronic Dobby Rapier Power Loom Machine 7

Certifications

750rpm Electronic Dobby Rapier Power Loom Machine 8

FAQ



1.Q:Are you a factory or trading company?

A:Yes,we are trading company and we also have own factory.

2.Q:Where is your factory located? How can I visit there?

A:Our factory is located in Gaoli Auto Expo City,Huishan Area, Wuxi, Jiangsu, China,You can fly to Shang hai airport.

3.Q:Where is your main market?

A:In recent years,our main markets are in Asia, Europe ,Noth America.

4.Q:What is the delivery time of your products?

Usually, the delivery time is 5 working days depending on your purchasing quantity.

5.Q:Can I get free samples from your factory?

A:Yes,of course,we are honored to offer your samples under $10 .however, freight you pay.

6.Q:How does your factory do regarding quality control?

A:Quality is priority.we always attch great inpotance to quality controlling from the very beginning to the very end. Our factory has gained IS09001

certification.

7.Q:If products have some quality problem, how would you deal with?

A:We will responsible for all the quality problem if this had happened.
