High quality Dobby Shuttleless Weaving Machine 736 Rapier Loom

Place of Origin China
Brand Name GOODFORE
Certification ISO
Model Number GF-736
Minimum Order Quantity 1 set
Price USD3000/SET-USD5000/SET
Packaging Details Wooden box
Delivery Time 15 working days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 100Sets /Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Rapier Loom Certification ISO9001
Export Markets Globle Material Steel
Reed Width Thickness 150cm,170cm,190cm,230cm,280cm,360cm Power 2.5W
Weight (KG) 3.1 KG Quality High Level
High Light

2000RPM industrial straight sewing machine

,

Flatbed industrial straight sewing machine

,

Flatbed computer controlled sewing machine

Leave a Message
Product Description

Dobby shuttleless weaving machine 736 rapier loom



Quick Details
Applicable Industries:
Manufacturing Plant
Showroom Location:
Indonesia, Pakistan, India, Uzbekistan
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
1 Year
Core Components:
Engine, Motor, Gear
Condition:
New
Type:
Rapier Loom
Application:
weaving Machine
Production Capacity:
99.99%
Place of Origin:
China
Brand Name:
TONGDA
Dimension(L*W*H):
2800x1600x1200mm
Weight:
3.1 KG
Power:
2.5KW
Warranty:
1 Year
Key Selling Points:
Automatic
After-sales Service Provided:
Engineers available to service machinery overseas, Free spare parts, Video technical support, Online support, Field installation, commissioning and training, Field maintenance and repair service
Reed Width:
150cm,170cm,190cm,230cm,280cm,360cm
Machine color:
As customer request
Machine Type:
rapier loom machine
Export Markets:
Globle
Feature:
User-friendly
Service:
Engineer Provide
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
India, Bangladesh
Certification:
ISO9001































































































Model GF736
Reed width (cm) 180(74") 200(78") 230(90") 250(98") 280(110") 330(130")
Rotation Speed(RPM) 190-300
Yarn Range Cotton:6Ne-80Ne,Wool:10Ne-135Nm,Chemical Fabric:900D-70D
Shedding Upper Mechanical(electronic)dobby,spring reversing motion, 20 or 24 shafts
Weft Insertion Form Six Linkages Weft Insertion
Beating-up Motion Four Linkages Short Crank Arm Beating-Up
Take-up and Rolling-up Continous take-up and separate rolling-up,full rolling diameter 400mm
Weft Selection 4-6 colors
Diameter of Warp Beam 600mm
Warp Stop 6 rows electric warp stop
Weft Stop Piezoelectric Ceramic Sensor Control Weft Stop
Electric System PLC
Power 1.8-2.2KW
Weight 3200-3500KG
Overall Size 3700x2000x1800(200cm/78'')





Products Picture

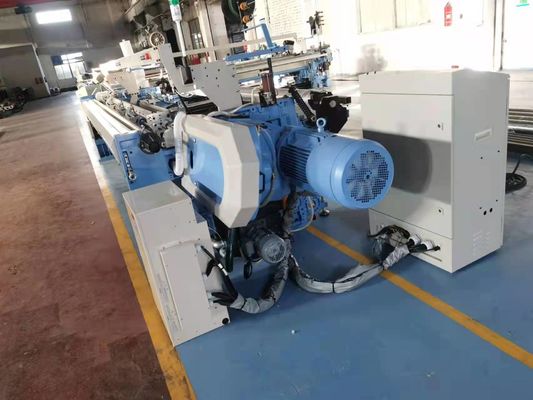

High quality Dobby Shuttleless Weaving Machine 736 Rapier Loom 0

High quality Dobby Shuttleless Weaving Machine 736 Rapier Loom 1





Our Advantages

●Transmission: the high speed crank is enabled by the clutch. It provides fast startup and is ideal for high speed working.
●Beating motion: the beating is carried out by the specially designed crank and levers with double side drives, it increase the beating area and can ensure the beating strength of high density and heavy fabric.
●Let off motion: the main parts of the let off motion such as the worm wheel and the worms are closed in an oil bath, which provides accurate matching of gears and extends its life.
Take up motion: the take up motion provides smooth fabric surface.
Control: micro-computer system with automatic stop upon warp and weft broken.
LCD shows the weaving parameters and statistics data, weaving parameters are adjustable from the panel.
