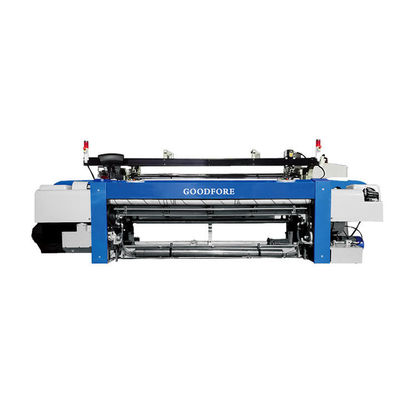

High Speed Dynamic Rapier Power Loom Microcomputer Control

High Speed Dynamic Rapier Power Loom Microcomputer Control

Product Details:

Place of Origin: China
Brand Name: Goodfore
Certification: ISO
Model Number: MG788

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD1500~USD4000/set
Packaging Details: woodern box
Delivery Time: 5-15 working days
Payment Terms: T/T, Western Union, L/C, , D/A
Supply Ability: 200/set per month
Get Best Price Contact Now

Detail Information

Condition: New Quality: High-quality
Type: Rapier Loom Material: Steel And Plastic
Brand Name: GOODFORE Weight: 2500 KG
Speed: 180-230rpm Reed Width: 150cm-360cm
High Light:

360cm rapier power loom

,

microcomputer control dynamic rapier loom

,

microcomputer control rapier power loom

Product Description

Textile Machine High Speed Excellent Wide Width Rapier Loom Model MG788


1---Main drive:High force start motor,brake machine to effectively reduce the stop mark.5.5KW(<280cm) / 7.5KW(≧280cm)
2--weft insertion:By Space 4 Linkrod structure, drive rapier wheel reciprocating motion by setor gear.Insert weft at left,handover
in mid, superior weft-holding mode to ensure a smooth weft handover.Single guidehook,GAMMA Gripper,GAMMA tape
3--Beating up:Conjugate cam beating up, Separate slay, Strengthen the rigidity of beating up and increase the beating up force.
Moving balance is better for high speed weaving.
4--Shedding: GT408 Electronic Dobby,with 20 pcs heald frame at most
5--Let off: Servo Electronic Let off,1.2KW(<280cm) / 1.5KW(≧280cm)
6--take up:Servo Electronic take up,density-change weaving.1.2KW(<280cm) / 1.5KW(≧280cm)
7--pick finding: Auto pick finding system: when weft broken, the power switch to the slow motor,which drive the motion of takeup,
LENO, color selection and Shedding, with the let-off device, to achieve a slow pick-finding function.Slow pick finding motion to
effectively eliminate the stop mark, avoiding accidental mechanical damage.
8--color selecting:Stepper motor control rotary high speed electronic weft selector,4-16 colors(standard 6 colors)
9--control system:Adopting 32 bit microcomputer control. Loom auto stop when weft breakage ,warp breakgae, empty weft,multi weft
and positioning stop. Automatically detect and display error. Group control management, remote control, on-line diagnosis.
10--Lubricating & Cooling:Closed forced circulation lubrication system,ensure the machine normal temperature rise. staple fiber: 5tex~1000tex; filament: 10D~3300D; Cotton: 3S~80S





Wide Reed Width LOOM- More than 450cm-650cm
Shedding device:
Dobby/Cam/Tappet/Jacquard
Warp/Warp stop motion:
By sensor/Auto stop
Color selection:
2/6/8 color mechanism or electric
Heddle frame Option:
2/4/6/8 SUPER SOLID TYPE
Weft Feeder Option:
2 or 4 Big feeder
Warp Beam Diameters:
600mm/680mm/1000mm
Selvage device:
By leno device
Tuck in:
L+R or L+M+R
Controller:
All in one control box with Display
Power:
1.8KW/2.2KW


Products Picture



High Speed Dynamic Rapier Power Loom Microcomputer Control 0High Speed Dynamic Rapier Power Loom Microcomputer Control 1High Speed Dynamic Rapier Power Loom Microcomputer Control 2

High Speed Dynamic Rapier Power Loom Microcomputer Control 3

High Speed Dynamic Rapier Power Loom Microcomputer Control 4



Fabric Show

High Speed Dynamic Rapier Power Loom Microcomputer Control 5







PRODUCT CONFIGURATION

High Speed Dynamic Rapier Power Loom Microcomputer Control 6

Production Process

High Speed Dynamic Rapier Power Loom Microcomputer Control 7

Advantages

●MORE INTELLIGENT
High reliability touch screen, new type communication technology and high electromechanical integration design make machine realize high intelligence.
MORE EFFICIENT
New type integrated side frames, the beating-up mechanism with good balance performance, and the excellent weft insertion system complement each other, applicable to various yarn counts, and at the same time help realize the weaving of high-speed, low vibration and high quality.
●MORE CONVENIENT
Full consideration of the convenience for the operation of workers in the course of design, external loose warp device, automatic central oil supply system, and friendly man-machine interface make machine more humanization, and embody the superiority in the course of application.
●MORE ENERGY-SAVING
New type energy-saving weft insertion system, shorten air path, increase jet sensitivity and reduce air consumption.





Our service

  • Provide technical design and solutions;
  • Design and manufacture non-standard equipment;
  • Carry out professional technical training and guidance according to the contract;
  • Spare parts are available at any time;
  • Remote technical consultation and service;
  • Provide other special technical services according to customer requirements.



Parts of customers

High Speed Dynamic Rapier Power Loom Microcomputer Control 8

Our exhibition



High Speed Dynamic Rapier Power Loom Microcomputer Control 9

High Speed Dynamic Rapier Power Loom Microcomputer Control 10



PRODUCTION WORKSHOP
High Speed Dynamic Rapier Power Loom Microcomputer Control 11
High Speed Dynamic Rapier Power Loom Microcomputer Control 12


FAQ



Are you a factory or trading company ?
yes ,we are trading company and we also have own factory
Where is your main market ?
12years ,our main markets are in Asia ,Europe ,North America
Can I get free samples from your factory ?
Yes ,of couse ,we are honored to offer your samples under $10.however ,freight you pay
If products have some quality problem ,how would you deal with?
We will responsible for all the quality problem if this had happed .
Where is your factory located?How can I visit there ?
Our factory is located in Gaoli Auto Expo City ,Huishan Area ,Wuxi ,China ,You can fiy to Shang hai airport .
What is the delivery time of your products ?
Qualitys is pridrity ,we always attch great inportance to quality controlling from the very beginning to the very end .Our
factory has gained ISO991 certification
