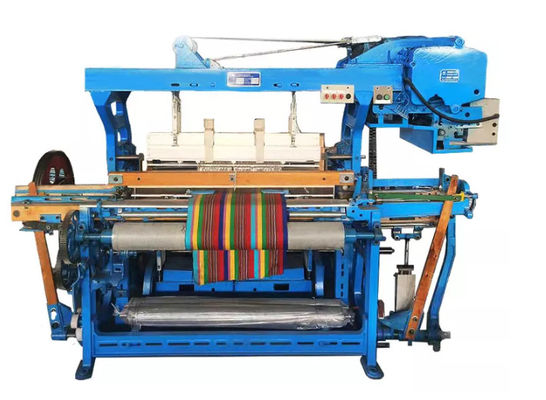

Ga618a 960rpm Steel Automatic Shuttle Loom 550mm Series Dobby Multi Box
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Disc Plate Diameter | 495/550mm | Motor Speed | 960rpm |
|---|---|---|---|
| Power | 0.8Kw | Color | Blue |
| Quality | High Quality | Warranty | 1 Year |
| Weight | 400Kg | Condition | New |
| Material | Steel | Product Name | Shuttle Loom |
| High Light | Multi Box Shuttle Loom,Automatic Shuttle Loom 550mm,960rpm Automatic Shuttle Loom |
||
Product Description
HOT SALE GOOD PRICE GA618A SERIES DOBBY MULTI BOX SHUTTLE LOOM
Quick Details
Applicable Industries:Weaving machines, shuttle loom machine
Warranty of core components:1 Year
Core Components:PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Condition:New
Type:Shuttle Loom
Production Capacity:110-130r/min
Place of Origin:China
Brand Name:goodfore
Weight:400 KG
Power:0.8KW
Warranty:1 Year
Key Selling Points:High speed and efficiency
Product name:Shuttle loom
Material:Steel
Quality:High-quality
Machine Type:electronic dobby
Payment Term:T/T
DELIVERY TIME:30-45 Days
Service:Online support
After Warranty Service:Spare parts
Service Provided:Free spare parts
Color:Blue
| name | shuttle loom |
| place of production | made in china |
| warranty | one year |
| quality | high quality |
| model | weaving loom |
Main product configuration.
use close type electronic dobby shedding ( 20pcs lever)
Use servo take-up and servolet-off
The main servo motor is used to drive the spindle directly.
Using Multi-layer cylinder to Control Shuttle Box lifting system
With plc computer control of integrated electric box, it can realize the functions of liquid crystal display equipment operation
status fault display 3 shift output statistics, woven machine speed control, weaving tension control, product process editing and
other functions
Six rows of electronic warp stop frame and light sensitive weft detector are used to automatically locate and stop.
1 , shuttle 4pcs 5 , dropper 165x0.3 5000pcs 2 , pirn 20pcs 3 ,Pneumatic element joint 1set 4 , reed 1pc
5 ,beam and cloth roller 1:1.5 set 6 , wire 330x0.4 5000pcs 7 , frame 16pcs
Use servo take-up and servolet-off
The main servo motor is used to drive the spindle directly.
Using Multi-layer cylinder to Control Shuttle Box lifting system
With plc computer control of integrated electric box, it can realize the functions of liquid crystal display equipment operation
status fault display 3 shift output statistics, woven machine speed control, weaving tension control, product process editing and
other functions
Six rows of electronic warp stop frame and light sensitive weft detector are used to automatically locate and stop.
1 , shuttle 4pcs 5 , dropper 165x0.3 5000pcs 2 , pirn 20pcs 3 ,Pneumatic element joint 1set 4 , reed 1pc
5 ,beam and cloth roller 1:1.5 set 6 , wire 330x0.4 5000pcs 7 , frame 16pcs
video
products picture
Advantage
This kind of loom is the latest product developed by Jiangsu Wuxi Goodfore Tex machinery co..ltd., the loom subtracts the
complicated mechanical control parts, adopts the multi-layer cylinder to control the take-off and landing of the shuttle box, and
can be controlled by computer and manual button, which reduces the operation difficulty of the worker. at the same time, it adopts
servo coiling, servo let-off and servo main motor direct transmission, which adapts to all kinds of products of different
densities. Through the plc liquid crystal computer display, can also achieve the slow weft search function. The quality of the
product has been improved. Since listing in 2006, it has been favored by consumers. Mainly suitable for weaving cashmere scarves,
silk, as well as a variety of A yarn-dyed product made of cotton yarn or blend yarn.
OUR SERVICE
1. Product quality control and delivery time are strictly controlled.
2. Direct manufacturing plants provide competitive prices.
3. All inquiries will be answered within 12 hours.
4. Provide OEM & ODM services.
5. Provide customers with first-class after-sales service.
FAQ
1.Q:Are you a factory or trading company?
A:Yes,we are trading company and we also have own factory.
2.Q:If products have some quality problem, how would you deal with?
A:We will responsible for all the quality problem if this had happened.
3.Q:Where is your main market?
A:In recent years,our main markets are in Asia, Europe ,Noth America.
4.Q:What is the delivery time of your products?
A:Usually, the delivery time is 5 working days depending on your purchasing quantity.
5.Q:Can I get free samples from your factory?
A:Yes,of course,we are honored to offer your samples under $10 .however, freight you pay.
