Sectional Intelligent Yarn Warping Machine Benninger Warping Machine

Place of Origin China
Certification ISO
Model Number DKGA538
Minimum Order Quantity 1 set
Delivery Time 20 working days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 100 sets/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Applicable Industry Warping Machine Type Warping Machine
Application Range Yarn Weaving Quality High-quality
Condition New Warranty 1 Year
High Light

Sectional Intelligent Yarn Warping Machine


Dia 1026mm Benninger Warping Machine


600m/Min Benninger Warping Machine

Leave a Message
Product Description

Intelligent Sectional Warping Machine Direct Warping Machine Benninger Warping Machine



Main technical parameters

(1) Working width 2300-5500(as your requirement)

(2) Beam flange dia. ≤φ1000mm

(3) Warping speed 0~600m/min

(4) Beaming speed 0~150m/min

(5) Power 3Phase AC 380V 50HZ

(6) Drum dia 1026mm

(7) Cone angle 9°(1:6.3)

(8) Cone length 1320mm

(9) Dynamic balance accord with GB9239 balance quality standard 6.3grade

(10) Drum drive 11kw/15kw three-phase asynchronous motor

(11) Speed deviation <0.5%

(12) Speed fluctuate ±0.2%

(13) Main bearing SKF

(14) Warping operation table traversing ball lead screw fixed, servo drive nut

(15) Guide rail ball linear rail

(16) Driving motor 0.75kw AC servo motor (Delta)

(17) Section traversing speed 0.001~9.999mm/r

(18) Section traversing deviation 0.02%

(19) Section location automatic

(20) Forward and back movement of warping table servo motor, ball lead screw drive

(21)Guide rail ball linear rail

(22) Yarn guide roller brake electro-magnetic brake

(23) Tension control constant

(24) Safety infrared stop motion

(25) Main control PLC

(26) Screen 10.4 inch Delta colorful touch screen

(27) Technical parameter calculations of warping length, roller length, strip, speed, displacement, etc.



Technical Parameter Working width: 2300-3600mm
1 Beam diameter: 800mm, 1000mm for option
2 Warping speed: 0-600m/min
3 Beaming speed: 0-120m/min
4 Deviation of beaming tension: ≤ ±2%
5 Braking distance: ≤2m at 500m/min
6 Drum diameter: 1000mm
7 Drum tapering: 1:8,for dia.800mm
1:6,for dia.1000mm
8 Cone length: 1150mm (beam dia.800mm,tapering 1:8)
9 Section traverse speed: 0.001-9.9999mm/r,stepless
10 Deviation of section positioning: ≤0.01mm
11 Devaiton of section traverse : 0.02%
12 Section width: 20 360mm or to order
13 Microcomputer work station : 10.4-intch touch screen
14 Number of yarn ends: 480(wool,cotton or blended yarn)
15 Cone pitch : 250×250mm or made to order
16 Input voltage: 3×380V ± 10%
17 Power of warping motor: 7.5Kw,11Kw
18 Power of beaming motor : 15-18.5KW
19 Weight of headstock:

7000Kg for width 2300mm Beam

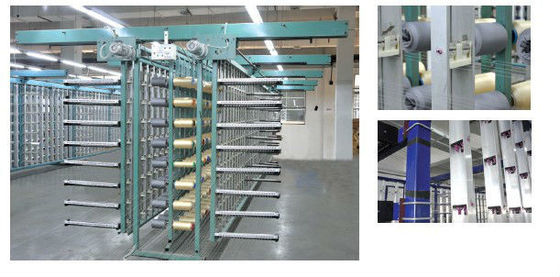

Sectional Intelligent Yarn Warping Machine Benninger Warping Machine 0

Sectional Intelligent Yarn Warping Machine Benninger Warping Machine 1Sectional Intelligent Yarn Warping Machine Benninger Warping Machine 2Sectional Intelligent Yarn Warping Machine Benninger Warping Machine 3

Our Advantages

1. Our belief is to pay attention to every detail.

2. Our motivation is the smile of customer satisfaction.

3. We have the original factory to ensure the best quality control of all kinds of export machinery.

4. Stable quality: Depending on the needs of the user, Our company has been through professional quality system certification. please feel free to purchase.

5. Continuous research and development of new products: in order to explore the international market, our company will achieve two breakthroughs: networking and service. Jacquard machine, trademark machine and carpet machine parts enter the foreign market. And improve the quality of production to meet the higher requirements of customers.

6. Integrity management: Our company has established a long-term stable cooperative relationship with a number of manufacturers. Our customers are across both at home and abroad.

7. Small profits: Our company's strength, re-credit, keep the contract, to ensure product quality, has won the trust of customers under the principles of various categories and low price.Welcome old and new customers from home and abroad call or come to our company for consultations and negotiations.Consecutive sales increasement of 10 years.

8. Best Service: Customer's satisfaction is always Goodfore Tex machinery priority concern, we are keen to solve any problem. We will answer all questions asked, help everyone in need and give response to every prayer.

Our service

1. We provide process design and verification free of charge.

2. Provide other special technical services according to customer requirements.

3. Arrange special personnel to track all orders and inform customers in time.

4. We provide free technical services on textile machinery and applications.

5. Equipped with perfect sales network.



1.Q: When we receive your machine ,is there any other Accessories we will get?

A: Yes,some easy abrasion spare parts will be provided free in case when some small problems happen.

2..Q: What about the after-sale service?

A: We provide 12 months quality warranty after dispatch,and some free easy abrasion spares of machine,we also provide long time free technical advisory services and technical clonsluting services,we will dispatch our engineer to provide online technical service if it is necessary.

3. Q: How does your factory do regarding quality control?

A: Quality is priority. Staff always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.

4.Q:What are your terms of payment?
A: D/A, L/C, D/P, T/T, Western Union.
5.Q:What about the transportation?
A: Usually we take seaway,cause it's more convenient and cheaper.
