WGT16A Weaving Machines Jacquard Loom High Speed With 5376 Hooks

Place of Origin China
Brand Name Goodfore
Certification ISO
Model Number 5376 hooks
Minimum Order Quantity 1 set
Price CN¥31,679~CN¥63,363/set
Packaging Details woodern box
Delivery Time 1-3 working days
Payment Terms T/T, Western Union, L/C
Supply Ability 200/set per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New Quality High-quality
Type Electronic Jacquard Material Steel And Plastic
Color White Brand Name GOODFORE
Weight (KG) 2000 Opening Height 20-120mm
The Highest Speed 650rpm
High Light

WGT16A Weaving Machines Loom

,

5376 Hooks Weaving jacquard Loom

,

WGT16A Weaving jacquard Loom

Leave a Message
Product Description

High speed electronic Jacquard head :

The size of the jacquard faucet is distinguished by the number of vertical needles. Expressed by number (commonly known as mouth number). The larger the number, the more stitches. There are 4, 8, 12 and 16 vertical needles in common jacquard machine, and the horizontal number of vertical needles varies with the number of jacquard machine. In the design of jacquard fabric (i.e. jacquard fabric), the number of stitches used should generally be equal to the number of warp yarns in a pattern cycle (simple assembly). The number of stitches should also be equal to the integral multiple of the number of complete warp threads of the ground organization, otherwise the continuity of the ground organization will be damaged at the pattern junction. The number of stitches is preferably an integral multiple of the number of holes in each row on the pattern plate, so as to facilitate the craftsman, ginning, assembly and other processes.

name
jacquard machine
place of production
made in china
warranty
one year
quality
high quality
model
jacquard machine
Jacquard needle numer
1408 2688 3200 4096 5120 (16A type)
5376 6912 7680 (24A type )
8912 9216 10240 12288 20480 (32A type )
Suitable machine type
high speed rapier loom ,air-jet ,water -jet ,gripper loom
Opening height
20-120mm
Pattern input
USB/network transmission
Transmission type
all oil bath gear
Connection method
vertical shaft /motor drive inderpendtly
The highest speed
650rpm
Technical feature
patent technology wallboard oil -bath gear transmission ,stable and reliable, suitable for large needle number machine







products picture

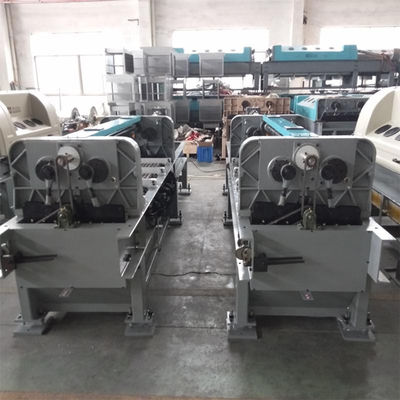

WGT16A Weaving Machines Jacquard Loom  High Speed With 5376 Hooks 0

WGT16A Weaving Machines Jacquard Loom  High Speed With 5376 Hooks 1

WGT16A Weaving Machines Jacquard Loom  High Speed With 5376 Hooks 2

WGT16A Weaving Machines Jacquard Loom  High Speed With 5376 Hooks 3





Product application



WGT16A Weaving Machines Jacquard Loom  High Speed With 5376 Hooks 4WGT16A Weaving Machines Jacquard Loom  High Speed With 5376 Hooks 5WGT16A Weaving Machines Jacquard Loom  High Speed With 5376 Hooks 6



Operating procedures:

1. During maintenance, the left and right red stop buttons must be pressed first, indicating that the machine is in the process of maintenance.

2. It is strictly forbidden to cross the barrier. Go up and down the stairs slowly and carefully. Be careful of sliding.

3. It is strictly prohibited to remove the cross bar of the corrugated plate crossing the bridge, hang it on the ground of the gantry arbitrarily and roll down, injuring the equipment and the car stopper.

4. The tools shall not be placed at will to prevent accidents caused by falling out of hand during operation.

5. When the safety baffle is moved due to maintenance needs, it shall be restored and returned in time after maintenance.

6. When the machine is started after maintenance, it shall be operated at a slow speed for more than 2 weft, and the fast train can be operated only after it is confirmed that the cloth quality is normal and the equipment operates normally.



Our service

  • Provide technical design and solutions;
  • Design and manufacture non-standard equipment;
  • Carry out professional technical training and guidance according to the contract;
  • Spare parts are available at any time;
  • Remote technical consultation and service;
  • Provide other special technical services according to customer requirements.
