Textile 1200mm Dia Roller 45KW Wool Decatising Machine Semi Automatic

Brand Name GOODFORE
Model Number ZCL 1200
Minimum Order Quantity 1 set
Price USD3499/SET-USD69999/SET
Delivery Time 20 working days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 100 sets/month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New Quality High-quality
Model ZCL 1200 Type Decatizing Machine
Power 28kw Weight 5400kg
Warranty One Year Voltage 380V/50Hz
High Light

1200mm decatising machine

,

wool decatising machine

,

1200mm wool decatiser

Leave a Message
Product Description

Quick Details

Applicable Industries: Hotels, Garment Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Construction works

After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local Service Location: Turkey

Showroom Location: None

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Hot Product 2019

Warranty of core components: 1 Year

Core Components: PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump

Condition: New

Automatic Grade: Automatic

Place of Origin: Jiangsu, China

Voltage: 380V/50Hz

Power: 28kw

Dimension(L*W*H): 6800* 4080 *2850mm

Weight: 5400kg

Certification: ISO CE

Warranty: One Year

After-sales Service Provided: Free spare parts, Video technical support, Online support, Field inst

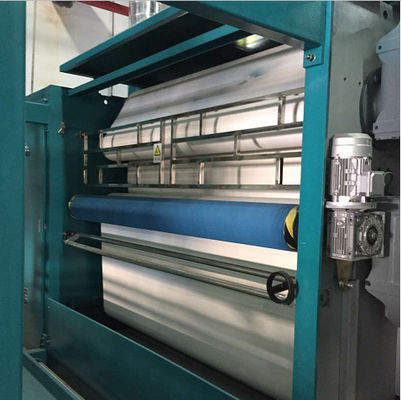

Textile 1200mm Dia Roller 45KW Wool Decatising Machine  Semi Automatic 0





Feature:

The entire process is continuous,full automatic, the fabric in the non-stop operation steamed done, so its efficiency is much higher than the traditional decatizer.



Advantage:

1. Using the most advanced touch screen and PLC control, the cloth feeding, tension, deviation, steam, steam exhausting amount, cloth and other actions are carried out automatically, greatly reduce the labor intensity of workers, improve product reproducibility.

2. After finishing the fabric quality, no end difference.

3. Working efficiency of 30 m / min.

4. After steaming, the fabric size is stable, the fabric surface quality and feel better.

5. The electric proportional valve is used to control the intake air, and the air cooling machine adopts frequency conversion control, which can conveniently adjust the steam and pumping intensity to ensure the fabric steaming.

6. The tension of the felt sleeve is controlled by two frequency inverters to ensure the tension is uniform and can be adjusted.

7. Seamless extra thick felt cover, to ensure that the felt sets can have a higher life expectancy.

8. Feeding device can be added at the end, which is more suitable for light type products



Technical Data:



1. Working width 1800mm~2300mm

2. Steam roller width 1900mm~2430mm

3. Steam roller Dia. 1200m

4. Fabric inlet speed 0~30m/min

5. Total capacity 45KW

6. steam pressure 4~6bar

7. steam consumption 60~70kg/h

8. air pressure 6bar

9. machine size L*W*H 5270* 4230 *2270mm

10. Weight: about 5500kg

Textile 1200mm Dia Roller 45KW Wool Decatising Machine  Semi Automatic 1

Textile 1200mm Dia Roller 45KW Wool Decatising Machine  Semi Automatic 2





Why Choose Us

1.Experienced and Professional scarf machinery manufacturer over 20 years
2. Strict quality control, professional service,honest communication and R&D team

3.Wide range scarf machinery, timely shipment. Drop shipping available
4. OEM available, A trial order or sample orders are accepted
5. 24 hours email reply pre and after sale service support.





After-sales Service

1.Provide training to operators for free.

2.Provide one year warranty for key components.

3.Lifetime paid maintenance.

Detailed reference contract.
