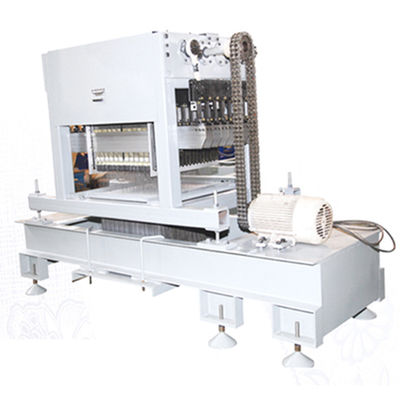

Iron Frame 120mm 12288 Hooks Electronic Jacquard Weaving Looms

Iron Frame 120mm 12288 Hooks Electronic Jacquard Weaving Looms

Product Details:

Place of Origin: China
Brand Name: Goodfore
Certification: ISO
Model Number: 12288 Hooks

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: plastic film
Delivery Time: 35 working days
Payment Terms: T/T, L/C, D/A, D/P, Western Union
Supply Ability: 2000/set per month
Get Best Price Contact Now

Detail Information

Model: WGT32A-12288 Opening Height: 50-120mm
Type: Electronic Jacquard Condition: New
Quality: High-quality Material: Steel And Plastic
Color: Green Quality: High Quality
High Light:

electronic Jacquard Weaving Looms

,

12288 hooks Jacquard Looms

,

120mm Jacquard Weaving Looms

Product Description


WGT32A-12288 high speed electronic jacquard loom weavingmachines 12288 hooks air jet room rapier loom



Brief Introduction:
The electronic jacquard loom have various sizes of jacquard head for option and easy to adjust. The jacquard needle loom spare parts of chain link can be easily changed to pattern through pattern pieces.

Electronic Jacquard Loom Machine have strong stability can be increased the production capacity, and also can used jacquard head of suitable various series.



MODEL JACQUARD TAPE REED HEALD PICK MAX. R.P.M WEFT
NEEDLE LINES WIDTH FRAME PEPEAT POWER DENSITY
EDJ 4/65 192N~448N 4 65mm 8 36 2.4KW 750-900 3.5~36.7cm
EDJ 6/45 192N~384N 6 45mm 8 36 2.4KW 750-900 3.5~36.7cm
EDJ 8/30 120N~160N 8 30mm 8 36 2KW 750-900 3.5~36.7cm
EDJ 6/55 192N~448N 6 55mm 8 36 2.4KW 750-900 3.5~36.7cm
EDJ 8/45 192N~448N 8 45mm 8 36 2.4KW 750-900 3.5~36.7cm


Features

  • Newly design stand and side plate provide strong stability of the machine which increased the speed and the production capacity.

  • The cover of the machine is made by ABS material and front cover is added to meet the international CE standard.

  • Upper take off roller leans forward, increasing the pulling power.

  • The plate of yarn feeder has redesign to steel spring, it will be more smoothly for the yarn passes at high speed.

  • Various sizes of jacquard head for option, easy to adjust with the module and electric control separated and may equip with Head.


Advantages
1. The open warp is horizontal construction.The iron frame runs at proper speed without having too much noise enhancing the stability and reliability of the machine.
2. The integration solenoid valve setting is small in size and sensitive while working.
3. Being the most advanced micro electronic jacquard unit, its construction is simple and compact, and it is easy to maintain.
4. The tension of warp is controlled automatically with the help of advanced technology
5. The easy-dismounting construction of monofilament can lessen the workers’ labor intensity.
6. The unique CAD printmaking system for woven tape is easy-to-use and is featured by the externally self-locking.
7. The woven flower shape is showed on windows directly and clearly.
8. Equipped with a built-in program and data system, the control system can record and show all kinds of producing data.It can also show all kinds of producing data.It can also show the fault point and its reason, and copy the data on time when accident happens.


Application

1. Luggage Straps
Luggage belt, suitcase straps, travel straps

2. Backpack Straps
Shoulder straps, sternum straps, compression straps

3. Pet leash
Tracking leash, Training leash

4. Elastic Tape
Jacquard elastic, Buttonhole elastic, Fold over elastic, Lingerie elastic

5. Shoelace
Shoestrings,bootlaces
