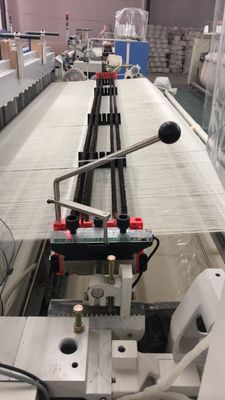

Centralized Networking Left Right Double Warp Beam Air Jet Loom

Left and right double warp beam air-jet loom, double warp beam air-jet loom, air-jet loom

[new rack structure and high speed adaptability]
Due to the adoption of frame with high rigidity structure, large diameter of weaving shaft gear and positive let off drive shaft installed in oil bath, the loom has further realized high speed and can more sensitively adapt to the weaving requirements of high density fabric. At the same time, the box wall panel and beam structure on both sides are optimized, which improves the vibration resistance and reliability, and ensures the loom ultra-high speed, wide width and low noise.

[beating dynamic balance structure]
The rocker adopts a segmented support structure in the belt, which improves the dynamic balance of the beating up mechanism. Accurate and powerful beating up in high-speed operation is the guarantee for weaving high-density fabrics.

[weaving expert system]
The electronic control system pre stores the initial setting scheme of a variety of fabrics in advance, which can call out the scheme to set automatically, making various setting items more specific and simple. At the same time, it also supports users to add and modify the setting scheme and store it, which makes the scheme more suitable for the actual weaving environment of customers.

[centralized networking]
It has powerful networking function, which can check the running state, efficiency, output and other parameters of loom online.

[coiling device]
Electronic coiling is adopted in coiling, combined with electronic let off. Through accurate forward and reverse rotation, it is very effective to prevent stop gear. AC servo motor is used to make the loom rotate synchronously with the loom through computer control to control the beating density.

Active device
In order to match the super high speed of the loom, a new type of active let off device is designed for ja30 air-jet loom, which improves its strength and is suitable for high-speed. The mechanism is designed on the outside of the loom wall panel, and the operation of eccentricity adjustment is very simple. The let off system adopts the standard configuration of double back beams, and the warp tension of the weaving shaft from full axle to empty axle remains constant. It is suitable for weaving various heavy or light fabrics.

[operability]
Rfja30 loom is designed to reduce the height of the frame without changing the capacity of the roll.
