Used Green  K88 Recondition Label Machine Used Jacquard Head Recondition Label Loom

Used Green K88 Recondition Label Machine Used Jacquard Head Recondition Label Loom

Product Details:

Place of Origin: China
Brand Name: Goodfore
Certification: ISO
Model Number: K88

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: woodern box
Delivery Time: 1-3 working days
Payment Terms: T/T, Western Union, L/C, D/A, D/P
Supply Ability: 200/set per month
Get Best Price Contact Now

Detail Information

Quality: High-quality Type: Eectronic Jacquard
Material: Steel And Plastic Color: Green
Brand Name: GOODFORE Speed: 600-800 RPM
Dimension(L*W*H): W600cm*H390cm*D220cm Weight: 500 KG
High Light:

K88 Recondition Machine

,

Staubli head Recondition Machine

Product Description

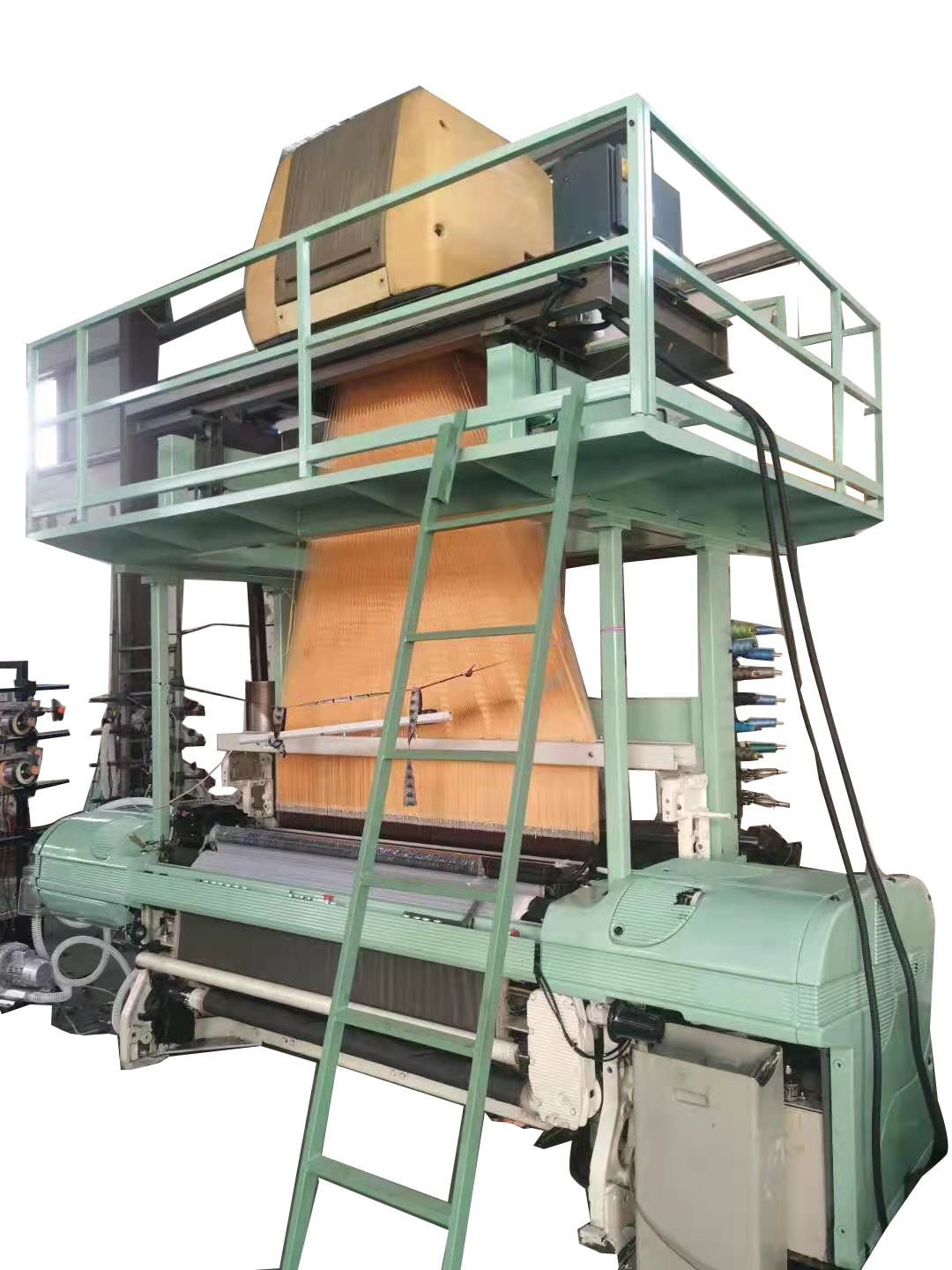

K88 recondition machine used jacquard head jacquard loom machine


name
Refurbished label loom
place of production
made in china
warranty
one year
quality
high quality
model
label loom
1.New harness set
4.New control box (Made in China)
3.New cutting system (Made in China)
4.loom width:190cm
5.RPM:400 to 450
More and more label factory boss likes this kind loom as it's capacity highy and price cheaper.
We suggest you to visit our factory to have some knowledge when you come to Canton fair this time.



 Used Green  K88 Recondition Label Machine Used Jacquard Head Recondition Label Loom 0

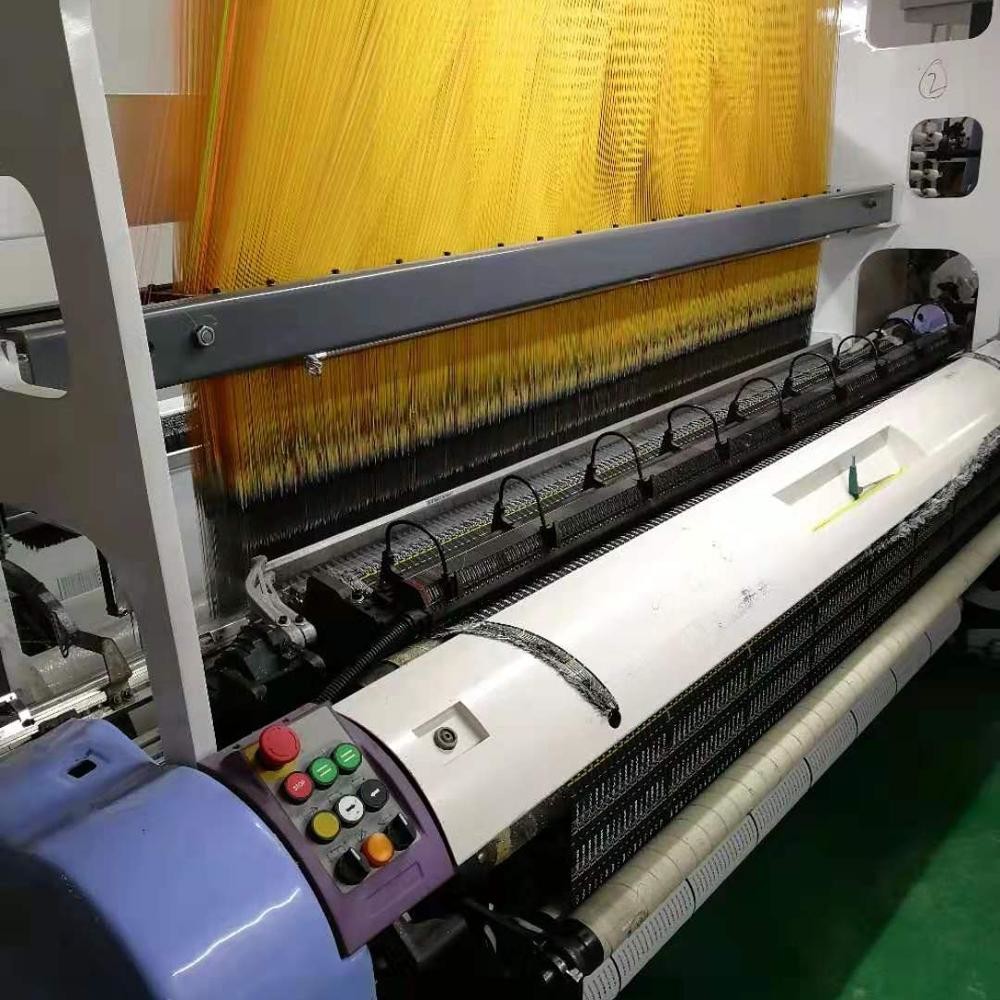

Base loom
--Loom : Thema Super Excel
--Speed: 400rpm~ 450rpm
--Loom Width:1900mm
--Cycel numbers:8 repeats for taffeta (1 repeats=20cm)
--Weft density adjustment:adjust in the range between 5 to 200picks/cm
--Take-up:electronic take-up
--Let-off:Microprocessor control electronic let-off device with tension device
--Drive:Direct drive by one main super motor(Hi drive systerm)
--Weft tension:Double-twist electronic weft storage device adjustment
--Weft searching system:Electronic automatic detecting weft finder
--Weft selector:8 color electronic controlled color selector
--Beam diameter:800 mm
--Cloth roller diameter:600mm (Max)
--Main motor Power: 8kw (approx)

Jacquard
--Model:Chinese jacquard
--Hooks:1408 hooks
--Control System:chinese control system
--Power:0.8KW
--Weight:800KG
--Jacquard support frame:Using double high tensile steel plate superstructure design,easy access with jacquard and high stability
with anti-vibration character.

Harness kit
--Harness cord:New made in china
--Harness Board:Ooriginal imported Germany Harness board
--Heald:Italy Imported Heald

Thermal Cutting System
--Contains: cutting support device, tool holder assembly (including cutter)
--Contains: ironing fixture and ironing board, air compressor purchased by customers

Thermoforming/Ironing System
--Upper forming:Tailor-made full-width temple,automatically adjust the temperature
--Lower ironing board:Specialized ironing board with excellent finishing effect,reduce the possibility of fabric over shinning


Technical Specification
--Electricity: 380V three phase
--Dimension: Above 440cm W, 250cm L,390cm H
--Weight:About 6500kg(total)

Our Advantages

1. Rich production experience: We specialize in the production and marketing research of imported jacquard machine, trademark machine, carpet machine parts, with 20 years of experience.

2. High quality raw materials: we mainly choose raw materials from large textile machinery factories, which are the best and largest raw material manufacturers in China.

3. Short delivery time: if a container takes 15-20 days. We also provide some standard size tubes and rods. If you need 3-5 pieces, we can deliver them as soon as possible.

4. The best after-sales service: more than 60% of the products are sold to Southeast Asia, the Middle East and Europe, all products are trusted by customers at home and abroad.

Our service

1. Provide technical design and solutions.

2. Design and manufacture non-standard equipment.

3. Carry out professional and technical training and guidance according to the contract.

4. Spare parts are available at any time.

5. Remote technical consultation and service.

6. Provide other special technical services according to customers' requirements.



Client feedback

Used Green  K88 Recondition Label Machine Used Jacquard Head Recondition Label Loom 1

Our exhibition

Used Green  K88 Recondition Label Machine Used Jacquard Head Recondition Label Loom 2

Certifications

Used Green  K88 Recondition Label Machine Used Jacquard Head Recondition Label Loom 3



FAQ



1.Q: What’s the delivery time?
A: It usually takes about 20 working days from order to delivery.
2. Q: Can I mix different models in one package?
A: Yes, different models can be mixed in one package, but the quantity of each model should not be less than the minimum order quantity.
3. Q: How does your factory do regarding quality control?
A: Quality is priority. Staff always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
4. Q:What's your warranty terms?
A: We offer different warranty time for different products. Please contact with us for detailed warranty terms.
5.Q: When we receive your machine ,is there any other Accessories we will get?
A: Yes,some easy abrasion spare parts will be provided free in case when some small problems happen.
6.Q:Can your products be customized?
A: Yes, we have a professional team which has rich experience ,so we'll try our best to satisfy your requirement.
